A picture on the screen: a product photo, a promotion banner, a map of how to get there. A tap on the picture can be an exit — for example, to a screen with details.

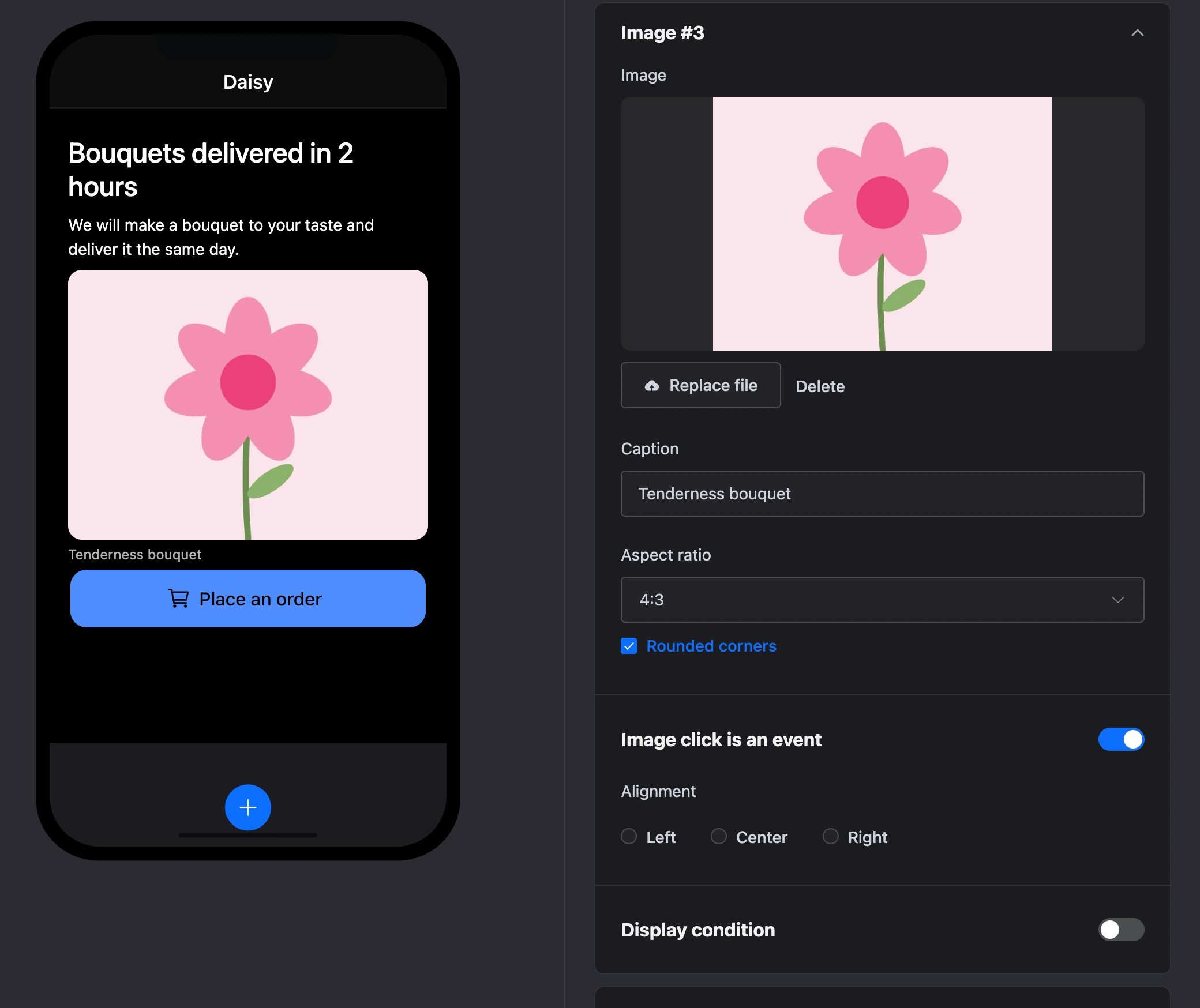

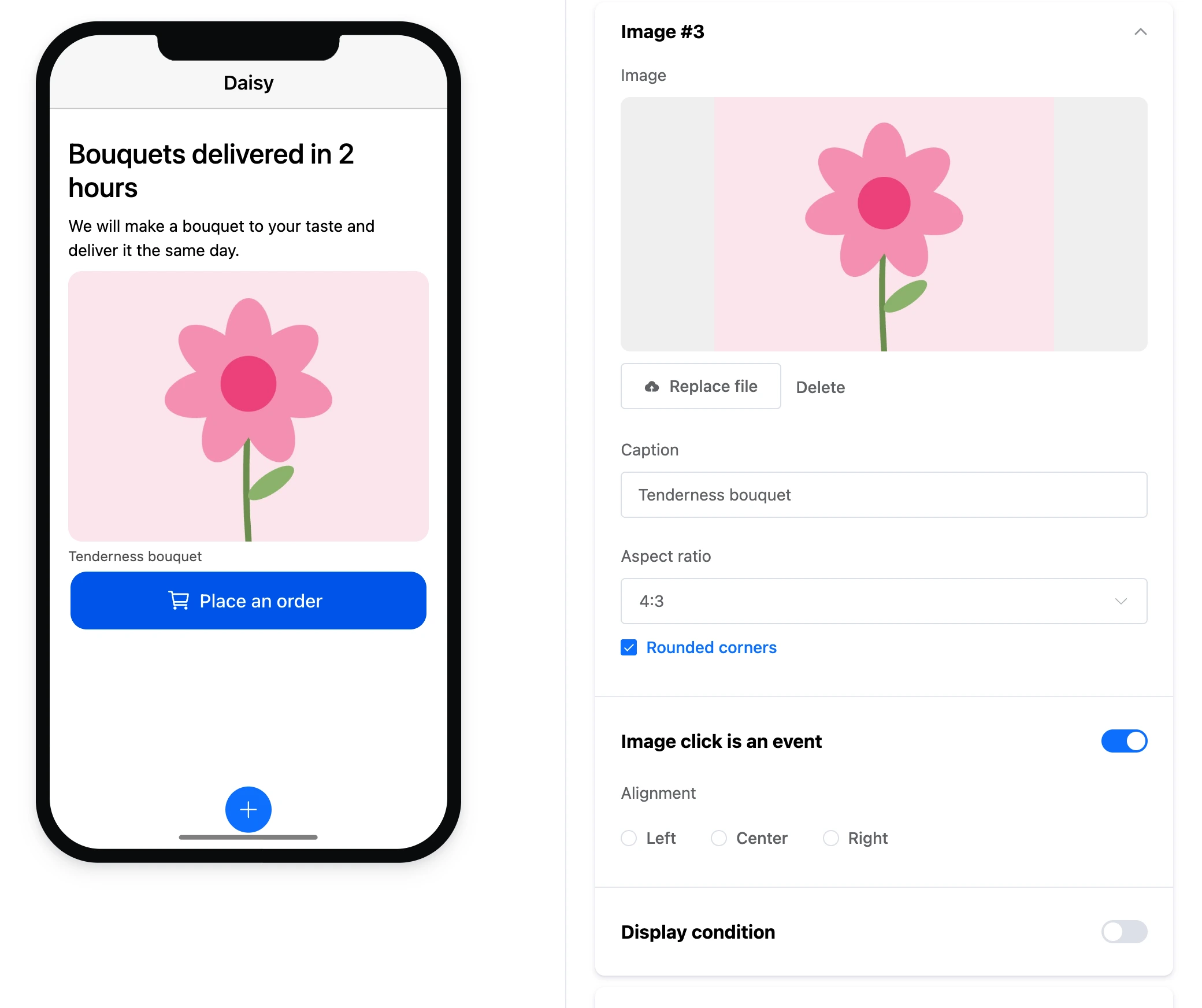

The "Image" element: a picture with a caption on the screen and its settingsThe "Image" element: a picture with a caption on the screen and its settings

Settings

  • "Image" — the picture file: the "Upload file" button, then "Replace file". Which formats fit is on the Files: images and videos page.
  • "Caption" — text under the picture.
  • "Aspect ratio" — "As in file", 1:1, 4:3 or 16:9. With a set ratio, the picture is cropped at the edges to fit the frame.
  • "Rounded corners" — the picture's corners are rounded.
  • "Alignment" — "Left", "Center", "Right".
  • "Image click is an event" — the screen gets an exit.

Exit

With "Image click is an event" ticked, the screen gets the "Image "Caption"" exit (without a caption — "Image #N"). Draw a link from it to the screen or block that should open on a tap.
