HTTP request#

Sends a request to an external API and puts the response into variables: pass an order to a CRM, check a promo code, get the delivery status.

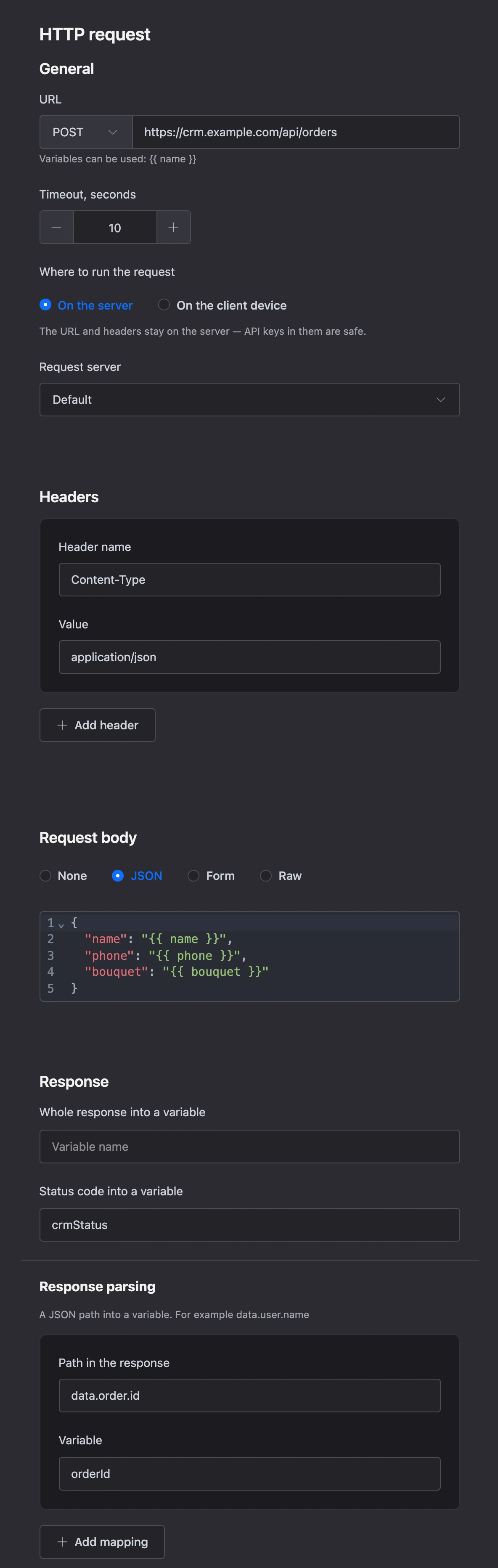

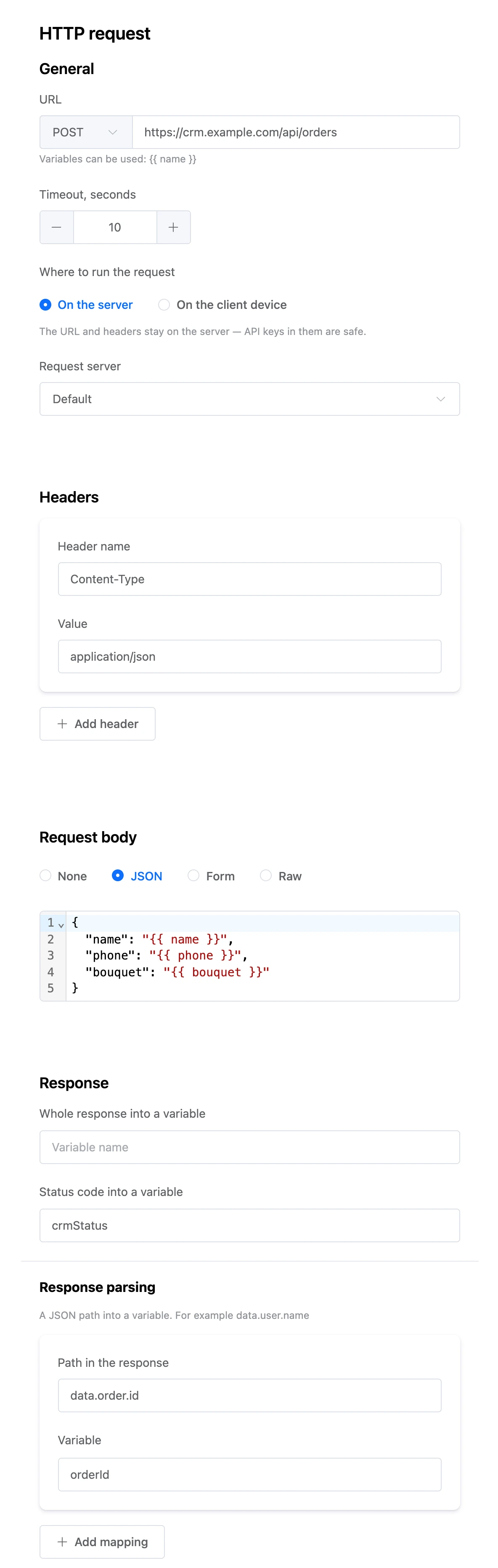

Settings#

• "URL" and the method: GET, POST, PUT, PATCH, DELETE. You can insert variables into the URL: {{ name }}.
• "Timeout, seconds" — how long to wait for a response. 15 by default. A request from the server waits no longer than 30 seconds, even if the field says more.
• "Where to run the request":
  • "On the server" — the URL and headers stay on the server, API keys in them are safe;
  • "On the client device" — the request goes from the person's browser or messenger. The service must allow such requests (CORS), and the person will be able to see the URL and headers — do not put secret keys there. The response is parsed into variables the same way as for a request from the server.
• "Headers" — up to 30.
• "Request body": "None", JSON, "Form" or "Raw".
• "Response": "Whole response into a variable", "Status code into a variable" and "Response parsing" — a path in the JSON, for example data.user.name, into a variable. Up to 50 parsing rules.

A request from the server has a "Request server": "Default", "Europe" or "SOCKS5 proxy" — your own proxy with a host, port, user and password. A proxy in an internal network will not work.

Exits#

• "Success" — the service replied with a 200–299 code.
• "Error" — another response code, the service did not reply in time, or the URL failed the check.

Specifics#

• Requests to local and internal addresses are forbidden — the service needs a public address.
• Failed requests get into the error log.
• A status code written to a variable can be checked by the next "Condition" block.
